Specifications
Dimensions & Weights
Width: 34 7/8 Inch
Depth: 8 5/16 Inch
Height: 11 1/4 Inch
Net Weight: 19.2 Lbs.
Shipping Weight: 22 Lbs.
Capacity
Heating Capacity: 12,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Placement Type: Wall Mount
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 65 to 86
Thermostat Range - Heating (F°): 60 to 86
Electrical Data
Power Source V / Hz / Ø: 115/60/1
Rated Amps: 11.4 Amps
Performance
Fan: Cross-Flow
No. of Fans: 1
Motor: Brushless Digitally Controlled
Motor Drive: Direct
Moisture Removal (Pts/hr): 2.75 Pts./Hr.
Airflow Rate Quiet (CFM): 148 CFM
Airflow Rate Low (CFM): 264 CFM
Airflow Rate Medium (CFM): 353 CFM
Airflow Rate High (CFM): 459 CFM
Operating Sound Level - Quiet (dB): 21 dB
Operating Sound Level - Low (dB): 28 dB
Operating Sound Level - Medium (dB): 36 dB
Operating Sound Level - High (dB): 42 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Drain Line Outer Diameter: 27/32 Inch
Drain Line Inner Diameter: 5/8 Inch
Refrigeration System
Refrigerant Type: R-410A
Refrigerant Connection Type: Flare
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Min. Line Length - Each: 9.8 Ft.
Min. Line Length - Total: 9.8 Ft.
Max. Line Length - Total: 49.2 Ft.
Features
Control Lock Function (Concealed Duct Only): No
Human Detection Technology: No
Room-Freeze Protection: No
Filter Clean Notification: No
Hot Start Heating System (Heat Pumps Only): Yes
Program Timer: Yes
Manual Power Switch: Yes
Defrost/Deicing: Yes
Air Filter: Yes
Filters Washable?: Yes
Filters Anti-microbial?: No
Restart Delay: No
Sleep Mode: Yes
Self-diagnosis: Yes
Condensate Sensor Connection: Yes
Soft Start: No
Quiet/Sleep Mode: Yes
Self-Cleaning Indoor Coil: Yes
Built-in Drain Pump (Indoor Unit): No
Hidden Display: No
Surge Cool/Heat: Yes
Auto Operation: Yes
Auto Restart on Power Failure: Yes
Auto-changeover: Yes
Automatic Louver Adjustment: Yes
4-Way Swing: Yes
Dehumidifying Mode: Yes
No. of Fan Speeds: 6
WiFi Connected: No
Technical Details
Voltage: 115 Volts
Warranty Terms
Parts Warranty: 5 Year
Features

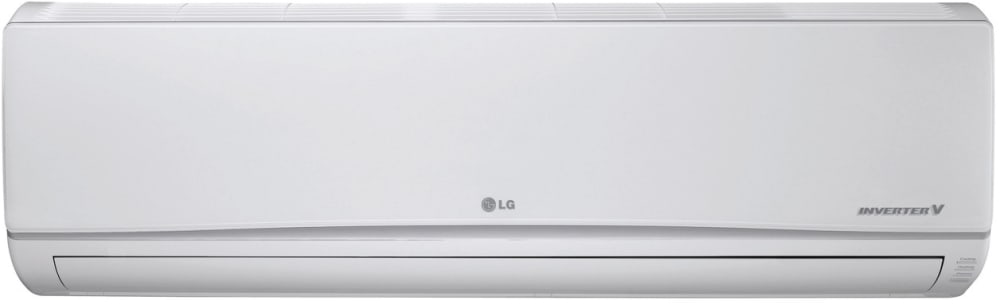

This is an indoor unit only, an outdoor condenser is necessary to function properly.
Sleep Mode
This function turns off the air conditioner automatically when you go to sleep
Auto Clean Operation
In the cooling and dehumidifying operations, moisture is generated inside the indoor unit and the auto cleaning function is used to remove such moisture
Dehumidifying Mode
This mode removes excess moisture from an environment with high humidity or in the rainy season, in order to prevent mold from setting in
Celsius(°C) & Fahrenheit(°F) Conversion
The unit converses from °C to °F or from °F to °C if Room Temperature KEY is pressed for 5 seconds
24-Hour On/Off Timer
Program the unit to turn on or off at any time up to 24 hours
4-Way Auto Swing
LG air conditioners deliver cool air to every corner of your room. The 4-way swing function blows the air quickly and efficiently in many directions
Auto Changeover
Changes the mode automatically to maintain the set temperature at ±2 °C
Auto Restart
Automatically restarts a unit to programmed setting when the electricity comes on after a power failure
Jet Cool/Jet Heat
Allows you to rapidly cool indoor air during summer months or warm indoor air during winter months
Auto Operation
In this mode, the fan speed and the temperature adjust automatically, based on the room temperature
Other Features
Timer
Wireless Remote Control
Inverter Variable Speed Compressor
12,000 BTU Heating Capacity
Ultra Quiet Operation
Self-cleaning Indoor Coil
Condensate Sensor Connection
Energy Saving
