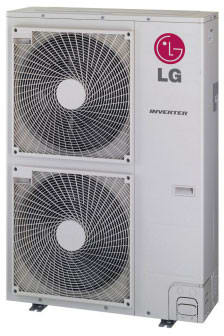

LG LMU540HV 54,000 BTU Class Multi-System Ductless Split Outdoor Unit with 58,000 BTU Heat Pump

LG LMU540HV 54,000 BTU Class Multi-System Ductless Split Outdoor Unit with 58,000 BTU Heat Pump

Model Number :LMU540HV

Introducing the cutting-edge LG LMU540HV 54,000 BTU Class Multi-System Ductless Split Outdoor Unit, a powerhouse of heating and cooling technology. This unit boasts a remarkable 58,000 BTU Heat Pump, ensuring your space stays comfortable all year round. With an impressive 10.3 Energy Efficiency Ratio, this system not only provides optimal . . . Show More >

Introducing the cutting-edge LG LMU540HV 54,000 BTU Class Multi-System Ductless Split Outdoor Unit, a powerhouse of heating and cooling technology. This unit boasts a remarkable 58,000 BTU Heat Pump, ensuring your space stays comfortable all year round. With an impressive 10.3 Energy Efficiency Ratio, this system not only provides optimal performance but also helps you save on energy costs. Utilizing R-410A Refrigerant, it is environmentally friendly and efficient. The Auto Operation feature adds convenience by adjusting settings automatically based on your needs. Upgrade to the LG LMU540HV for top-tier performance and comfort.

< Show Less

Specifications

Dimensions & Weights Width: 37 13/32 Inch Depth: 13 Inch Height: 54 11/32 Inch Net Weight: 213.8 Lbs. Shipping Weight: 236 Lbs. Capacity BTU Class: 54,000 BTU Heating Capacity: 58,000 BTU Min Connectable Capacity: 24,000 BTU Max Connectable Capacity: 73,000 BTU General AC System Type: Mini Split Component Type: Outdoor Unit Operation: Cooling with Heat Pump No. of Rooms: 8 Min No. of Connectible Indoor Units: 2 Max No. of Connectible Indoor Units: 8 Electrical Data Running Current Cooling - Min. (Amps): 4.8 Amps Running Current Cooling - Rated (Amps): 24.5 Amps Running Current Cooling - Max. (Amps): 21 Amps Running Current Heating - Min. (Amps): 7.1 Amps Running Current Heating - Rated (Amps): 25.7 Amps Running Current Heating - Max (Amps): 21 Amps Power Input Cooling - Min. (Watts): 1,000 Watts Power Input Cooling - Rated (Watts): 5,100 Watts Power Input Cooling - Max. (Watts): 5,100 Watts Power Input Heating - Min. (Watts): 1,490 Watts Power Input Heating - Rated (Watts): 5,400 Watts Power Input Heating - Max. (Watts): 5,340 Watts Performance Compressor Noise Level - Cooling (dB): 54 dB Compressor Noise Level - Heating (dB): 56 dB Energy Star Certified: No EER (Energy Efficiency Rating): 10.3 SEER (Seasonal Energy Efficiency Rating): 18.4 Piping Connections Power and Communication Cable - No.: 3 Power and Communication Cable - AWG: 10 Liquid Line Outer Diameter: 4 Inch Suction Line Outer Diameter: 16 Inch Refrigeration System Refrigerant Type: R-410A Compressor Type: Inverter Max. Line Length - Each: 229.6 Ft. Max. Height Diff. btwn. Indoor and Outdoor Units: 98 Ft. Max. Height Diff. btwn. Indoor Units: 49 Ft. Outside Temperature Range for Cooling - Min.: 14 °F Outside Temperature Range for Cooling - Max.: 118 °F Outside Temperature Range for Heating - Min.: 0 °F Outside Temperature Range for Heating - Max.: 64 °F Features Inverter (Variable speed compressor): Yes Low Ambient Operating Threshold (F°): 14 Corrosion Protection: Yes Technical Details ADA Compliant: No Voltage: 230/208 Volts Warranty Terms Parts Warranty: 7 Year GTIN UPC: 048231367806
