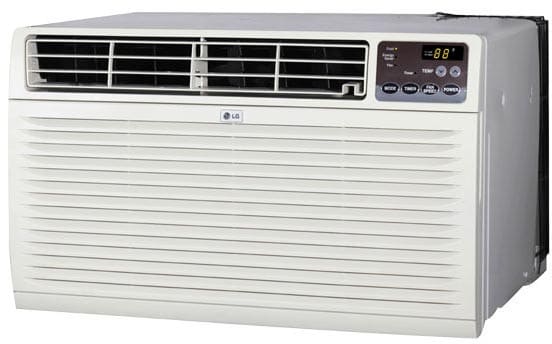

Thru-the-Wall Air Conditioner - LT103CNR
Keep Your Cool
Wall units are not only stylish but offer powerful performance with innovative features including multiple cooling and fan speeds.

Universal Fit For Sleeve
LG's universal thru-the-wall air conditioners fit competitive wall sleeves (26" standard size).

Gold Fin Anti-Corrosion
Standard on all LG units, their patented Gold Fin process is an anti-corrosion coating that forms a protective shield to help the unit last longer.

3 Cooling and Fan Speeds
Three powerful cooling and fan speeds allow you to control the temperature of your room at your pace.

Welcome To LG
LG Electronics USA Commercial Air Conditioning business is a leading player in the global air conditioning market, manufacturing both commercial and residential air conditioners and providing total sustainability and building management solutions. From consumer units to commercial air conditioning systems, LG provides a wide range of innovative products for heating, ventilating and air conditioning.

How To Choose A Room Air Conditioner
Compared to large capacity central units, room air conditioners have several advantages. The initial cost of a room air conditioning unit is significantly lower than the cost of central air. Because room air conditioners are designed for cooling small spaces, operating costs are reduced. And, room air conditioners can provide personalized temperature and humidity controls that central systems cannot.

Calculating Cooling Capacity
Cooling capacity is the critical factor in properly selecting a room air conditioner. Cooling capacity is measured in British Thermal Units (BTUs) and typical models will range in capacity from 5,000 BTUs to 28,500 BTUs.

Choosing an undersized unit will overwork the unit and it will not cool properly. Choosing an over-sized unit will cost more to buy and operate and it will not dehumidify properly.

We can help you to calculate capacity. Be prepared to provide specific information on:
Room Dimensions
A simple floor plan to show the location of doors and north-facing windows
The number of people it will serve
Sources of heat such as lamps, TV and appliances
An explanation of what's above the intended room
Your insulation provisions
Cooling Capacity by Room Size
Measure the length and width of the area to be cooled. Multiply the length by the width to determine square footage or square meters. Locate the room size in the chart below to select the appropriate BTUs. Then use the product information to select the unit for your room. When cooling rooms with uninsulated ceilings, great rooms, or southern or western sun exposures - step up to the next BTU size.
Room SizeBTUSq. Ft.Sq. m15014 up to 5,00016515 5,200216206,000350338,000425399,0005004610,0006406014,009008415,1001,11010318,0001,17010918,5001,43513322,0001,67215425,0001,96018228,500

Air Conditioner Tips
Air flow - Keep air filters clean. Do not block air flow areas.

Roomside view - J-models feature concealed power cord storage, this eliminates excessive cord exposure when receptacle is located close to unit.

Wall Opening For RAB46/47/48 Cases
A finished opening of 26 1/8" x 15 3/4", clear of intrusions, is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields. NOTE: units should be caulked on all four sides of case to the building exterior to assure building integrity.
